Leveraging Large Language Model Assistance on Explicit Object Target Prediction and Navigation in Unseen Area

1. Modular Approaches in Object Navigation

Modular methods have become increasingly robust in the field of object navigation (ObjectNav) due to their ability to decompose indoor scene navigation into interpretable and manageable sub-components—typically encompassing perception, planning, and control. This separation not only improves interpretability but also enables targeted improvements within each module, making the overall system more flexible and robust.

SemExp [1] initiated a spatial semantic map that guides exploration and decision-making. It extends active neural SLAM [6] to explicitly generate a semantic map, allowing the model to create a long-term policy based on prior semantic information. Building upon this foundation, several works start leveraging this feature into the use of various long-term policy strategies. The first to mention is Frontier SemExp [7], which introduced the frontiers concept using deep reinforcement learning. This work demonstrates significant breakthroughs; by exploring through frontiers, the model consistently finds the goal object effectively. However, its policy still lacks consistency, as it does not always succeed in locating the object. Another model adopts a supervised method to define its policy. PEANUT [4] extends the modular paradigm by explicitly modeling object likelihoods in unexplored areas of a scene. It leverages the semantic map constructed via SemExp to predict the most probable object locations even in regions the agent has not yet visited. This probabilistic map significantly enhances navigation efficiency. However, PEANUT’s reliance on convolutional architectures, PSPNet [8], to model spatial distributions limits its capacity for long-range dependencies. The use of convolutional layers restricts the receptive field, which may hinder the model's ability to understand spatial relationships across the scene. To address this, attention-based mechanisms—such as those inspired by SegFormer [9] architecture—offer a promising alternative. Attention mechanisms can capture global spatial dependencies more effectively, enabling better reasoning over large, partially explored maps and enhancing object prediction capabilities in unobserved regions.

2. Language Models on Leveraging Visual Perception

Another notable limitation in current modular systems arises from their visual perception module, which typically uses models like Mask R-CNN [5] to segment and classify objects in the environment. While effective in many cases, this pipeline is susceptible to false positives—misclassifications or hallucinated detections that can lead to navigation inefficiencies or failures.

To mitigate this, recent research has explored the integration of large language models (LLMs) into modular navigation pipelines, like L3MVN [10]. This model inherits the Frontier SemExp [7] feature, which is based on frontiers policy. Through this frontiers policy, the model uses masked language model [11] to score the object near frontiers and select a future goal with the highest score. Although promising, this strategy heavily relies on LLM performance. The lack of visual interpretation during global goal selection has led to several mistakes. Therefore, in this paper, we leverage both visual and LLM representation to define the goal, in hope, the integration of these two will improve the performance.

1. Problem Formulation and Overview

The object navigation (ObjectNav) task is formulated over a set of 𝑁 episodes. In each episode, the agent is placed within a unique scene 𝑠, begins at an initial position 𝑝, and its objective is finding an object goal category 𝑐. For episode 𝑘, a tuple {𝑠_𝑘, 𝑝_𝑘, 𝑐_𝑘} is given as input. The agent must navigate through the environment to find an instance considered to belong to object category 𝑐 by following a certain policy 𝒫. At each time step 𝑡, the agent receives an observation 𝑂_𝑡, which consists of RGB and depth images capturing the surrounding environment. A navigation policy 𝒫, denoted in Equation (1), processes this observation and outputs an action 𝑎_𝑡. This process loops until the agent chooses the stop action, indicating that it has either found the target object or terminated the episode. The challenge lies in determining an effective policy 𝒫 that enables the agent to locate the target object efficiently and accurately across a variety of unseen scenes.

To resolve the problem mentioned, we present our redesigned model concept for ObjectNav tasks in [4], by leveraging LLM features in the supervised feature. Figure 1 shows the overview of the proposed policy model. The policy begins by projecting the observation into a top-down view using semantic mapping (𝒎_𝒕) as proposed in [1]. From this semantic representation, we apply a trained explicit prediction model 𝜋 to map the probability of a specific object category in unexplored areas. For each navigation episode, only one target object category is selected (𝑐_{𝑡𝑎𝑟𝑔𝑒𝑡}). For each feature of the policy will be detailed in following sections.

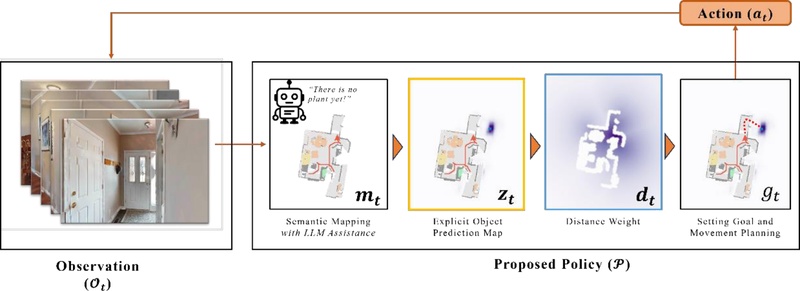

Fig. 1.

Overview of proposed policy on given problem formulation (for each step).

2. Semantic Map Projection (with LLM Assistance)

Our semantic mapping module builds on established practices in RGB-D-based scene understanding, incorporating both geometric and semantic follows [1,6]. At each timestep, the agent receives an RGB-D observation along with its pose information. The RGB image is processed using a Mask R-CNN [5] segmentation network to identify object instances and assign semantic category labels to each pixel. This segmentation covers C target object categories and may include additional background or contextual classes. The labeled pixels are then lifted into 3D using the depth data, resulting in a colored point cloud. To create a navigable map, only points within a predefined height range, corresponding to the agent’s physical dimensions, are considered for obstacle labeling. The 3D point cloud is then converted into a voxel occupancy grid, which is collapsed along the vertical axis to form a 2D egocentric semantic map. This local map is transformed into an allocentric global frame using the agent’s pose and aggregated over time to construct a global semantic map. Finally, this part of pipeline will output (𝑁 + 4) × 𝐻 × 𝑊 map, whereas 𝐻 and 𝑊 respectively show height and width of the proected map, and 𝑁 shows the number of listed categories to be projected. There are additional 4 channels, which represent the channel for explored map, obstacle map, agent trajectory (from the beginning until current state), and current position of the agent.

To enhance the reliability of semantic mapping, we address a notable limitation of Mask R-CNN—its tendency to false positives, especially when instance segmentation fails on similar objects and small objects. To mitigate this, we incorporate a Large Language Model (LLM) GPT-4o [12] to validate each segmented object instance, as shown in Figure 2. The LLM acts as a verifier by assessing whether a predicted object category is contextually consistent and likely to exist in the current scene. More specifically, this LLM is utilized whenever the agent has identified the object goal through Mask R-CNN. In this case, we use a flag called found_goal, set to 1 when the agent detects the object goal, and set to 0 otherwise. The input to the LLM comprises a text prompt and the current scene image. The text prompt asks, “Do you see <object_goal> in this scene?”, along with attaching the image of the current scene in which the model detected the object goal. Intuitively, the LLM verifies the agent’s judgement regarding the existence of the object goal. If the LLM confirms it as true, the agent remains using current goal. Otherwise, the found_goal flag is turned off, and the exploration continues. This additional validation step significantly reduces incorrect semantic labels before they are projected onto the global map.

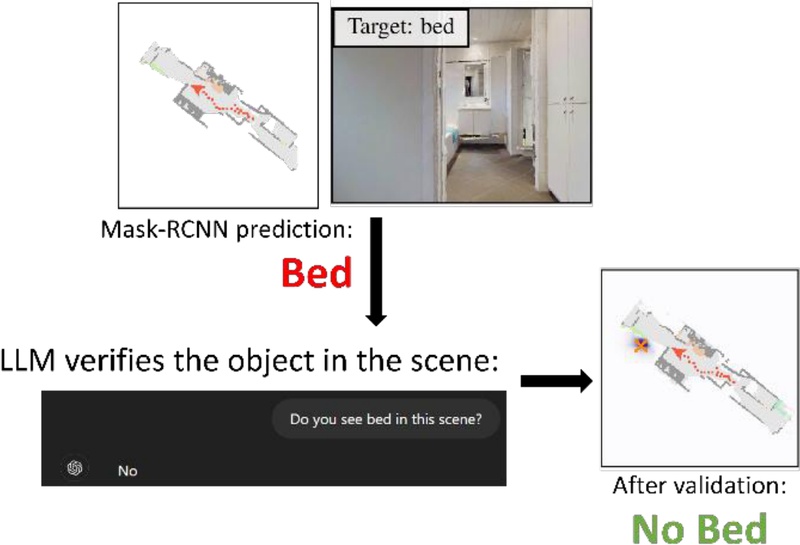

Fig. 2.

LLM assistance process on validating the existence of an object in the scene.

3. Explicit Object Prediction Map

To estimate object probability maps in unexplored areas, we used transformer-based model with rich global contextual between pixels, by following [9]. As illustrated in Figure 3 (Explicit Object Prediction Map block), its four-stage Mix-Transformer encoder builds overlapping patch tokens; each stage couple reduction self-attention with a depth-wise 3x3 convolution, simultaneously capturing long-range dependencies and local details. This enables us to avoid using positional embeddings so it can be used on any input size. Finally, the process continues to decoder part which consists of efficient MLP that is more efficient than the use of convolution decoder.

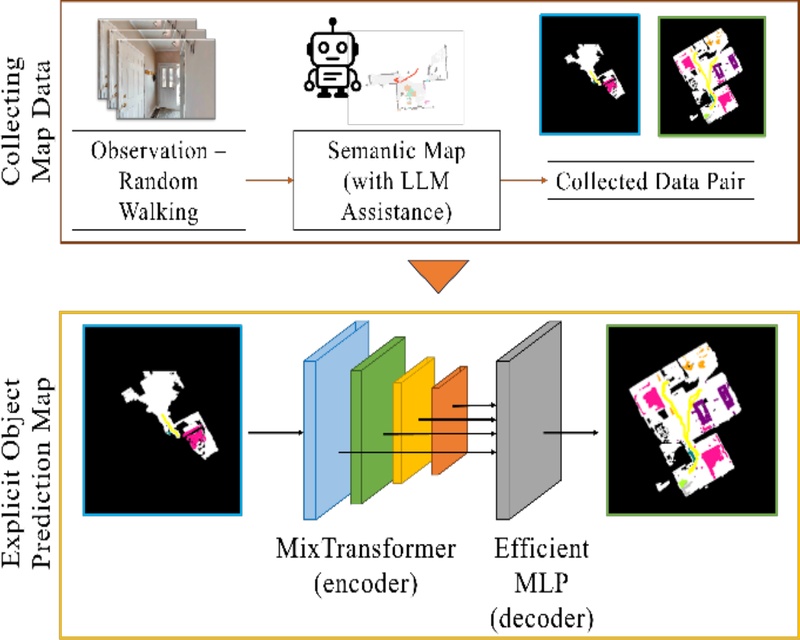

Fig. 3.

The process of explicit object prediction map.

Now, we describe the technical process for map projection. Similar to the segmentation process, instead of using 3 channels input, the map projection adapts the segmentation model to receive the semantic map output, as it is an extension of the semantic map, with the (𝑁 + 4) channels number. We trained the model with output of N_goal channels to explicitly represent the target object map (𝒎_𝒕) in the task. Each channel in 𝑁_{𝑔𝑜𝑎𝑙} corresponds to one target object. For the next step, we retrieve the explicit prediction map to a model 𝜋, as mentioned earlier, which focuses solely on the target for current episode (𝑘), where the mapping corresponds to Equation (2). As a result, we obtain the probability map 𝒛_𝒕 of the object goal. Visualization of all this process is depicted in Figure 3.

4. Setting Goal and Movement Planning

As we obtain 𝒛_𝒕, intuitively, we want the agent to go directly to the point with the highest value—indicating where the policy predicts the object is most likely located. However, this is not always optimal. For example, consider the first and second highest probability clusters on the map, where both are located in different regions. If the agent is significantly closer to the second-highest probability cluster, it would be reasonable for the agent to visit that area first. This suggests that distance plays a role in goal selection. Based on 𝑧_𝑡, the goal location (𝑔_𝑡 ∈ ℕ²) is determined by selecting the point with the highest weighted probability, where the weights are influenced by geodesic distance (𝒅_𝒕). The goal is selected according to the Equation (3):

Finally, a movement plan is computed to navigate toward the selected goal 𝑔_𝑡, guiding the agent’s actions at each step throughout the episode.

1. Experiment Setup

We conduct our experiments on the HM3D [13] dataset, which offers a diverse environment and is well-suited for ObjectNav tasks. Prior to the main evaluation, we train our explicit goal prediction model using data collected through a random walk policy. Specifically, for every 4,000 newly explored pixels, the semantic map is annotated, and this process is repeated across 1,000 episodes to build a comprehensive dataset. The prediction model 𝜋 is trained for 60,000 steps using all collected pair input-output maps. We train this model using Adam optimizer with a learning rate of 0.0005. We set the objective learning of binary cross-entropy as the loss function to ensure the result will show a probability in [0,1] each region, so that a region only belongs to at most one object.

For evaluation, we use the validation split of HM3D, running 500 episodes to test the agent’s ability to navigate toward specified objects. We compare our method with several baseline models, both types that are without and with LLM.

• a. Random walk policy, which serves as a lower bound to demonstrate the model's effectiveness is not a random success.
• b. Frontier SemExp [7] is a model that improves frontier-based and mapping by using deterministic policy trained with reinforcement learning.
• c. PEANUT [4], which serves as the primary benchmark for explicit prediction mapping, without relying on LLM.
• d. d.L3MVN [10] is a model that uses the frontier-based like in Frontier SemExp. However, instead of training its deterministic policy, it leverages LLM to decide which frontier points the agent should explore.

To assess the contribution of the distance-based weighting scheme in goal selection, we perform an ablation study that contrasts two ways: (i) using the explicit object-prediction map alone and (ii) utilizing explicit object-prediction map and distance-based weight. This comparison reveals whether the weighting strategy with distance-based further optimizes agent’s performance on the Object-Goal Navigation task.

2. Result and Discussion

Quantitatively, the experiment results are shown in Table 1. We are using two metrics, success rate (SR) that shows how many success episodes over all episodes and success weighted by path length (SPL) which follows Equation (4) that uses: binary point whether the episodes success (𝑆_𝑖 = 1) or not (𝑆_𝑖 = 0); path trajectory of the agent takes (𝑃_𝑖) and the shortest path from the start point to the actual goal (𝐿_𝑖). As an initial experiment, the random walk policy clearly demonstrates that a well-defined policy is required to find objects in this environment, as the random policy fails in all episodes. This is followed by experiments on several baseline models.

Table 1.

Comparison among prior models.

At first glance, we observe that explicit models, PEANUT and Ours, achieve better metrics compared to frontier-based approaches. The primary reason might be that the goal policy in Frontier SemExp relies solely on a simple linear layer without further extraction of semantic knowledge. Then, we compare PEANUT and Ours, both of which do not include LLM features. The SPL metrics between these two indicate that replacing convolution-based models with attention modules for explicit prediction maps leads to more extensive exploration. This is reflected in the lower SPL of the model using attention mechanisms, which, in turn, results in a higher success rate.

Finally, we compare models with LLM-integrated policies. Observing direct comparisons, L3MVN againts Frontier SemExp and Ours againts Ours (without LLM), the metrics show improved performance for models with LLM. This suggests that LLM indeed contributes to enhanced scene understanding. Furthermore, among LLM-integrated models, the strategy of validating object existence to create robust semantic maps yields better performance. This improvement is likely due to the direct supervision that allows full utilization of the LLM’s semantic reasoning capabilities.

We next evaluate whether integrating the distance-based weighting strategy improves goal selection. Table 2 compares explicit prediction alone and additional distance-based weight, for both without and with LLM. It shows adding distance-based weight improves both metrics. SPL increases significantly because the agent checks nearby candidate regions first, making the path more efficient before moving on to farther locations. Meanwhile, relying on the prediction map alone often causes worst performance because it wastes time searching. Hence, it may lead to exceeding the timestep limit and the episode is considered fail. Note that in these failed episodes, the found_goal flag is less likely active, so the LLM has no impact.

Table 2.

Experiment on distance-based optimization.

We conducted an additional analysis to check both complexities based on inference time and LLM related risk. For inference time related, we measured the average latency of each module on one navigation step (refer to Figure 1). Processing the raw observation and updating the semantic map takes 22 ms; the explicit prediction module adds 120 ms; distance-weight computation takes 136 ms; and goal-action planning requires 36 ms. Additionally, the GPT-4o as the LLM model could cause 2.6 s. However, we only use this LLM feature once when the found_goal is active. Hence, it is expected not to cause significant bottlenecks in the inference process. To assess risk, we examined cases in which the LLM reported object absence. In most scenarios, the LLM successfully resolves the false positive; for example, in Figure 4 (top), a bed frame initially misclassified as a chair. Then the model continued the exploration until it found a real chair. We observed only one failure, where LLM mistakenly dismissed a detected sofa as in Figure 4 (bottom). Then after exploring nearby, looking from a different pose, the sofa is detected again and LLM correctly verified. Overall, the LLM can be still reliable for various indoor scenario based on given scenes.

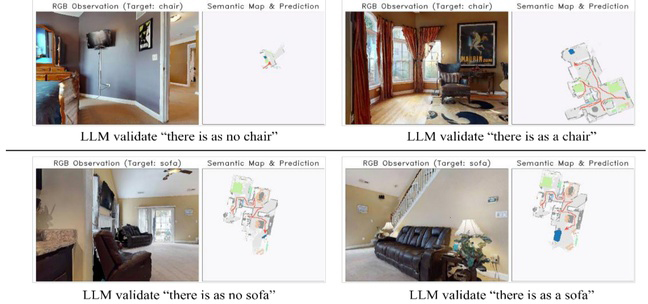

Fig. 4.

Verification by LLM when the target object is found.
